Filter Manufacturing Process
Industrial Filter Element Production Process
A simple overview of how we produce industrial filter elements, from filter media pleating and metal mesh forming to assembly, end cap bonding, and final filter structure completion.
Basic Production Steps for Industrial Filter Elements
Industrial filter elements are produced through several basic forming and assembly steps. From filter media pleating and automatic cutting to metal mesh rolling, welding, assembly, glue application, and end cap bonding, each step helps form the final filter structure according to the required size, material, and application.
Filter Media Pleating and Cutting

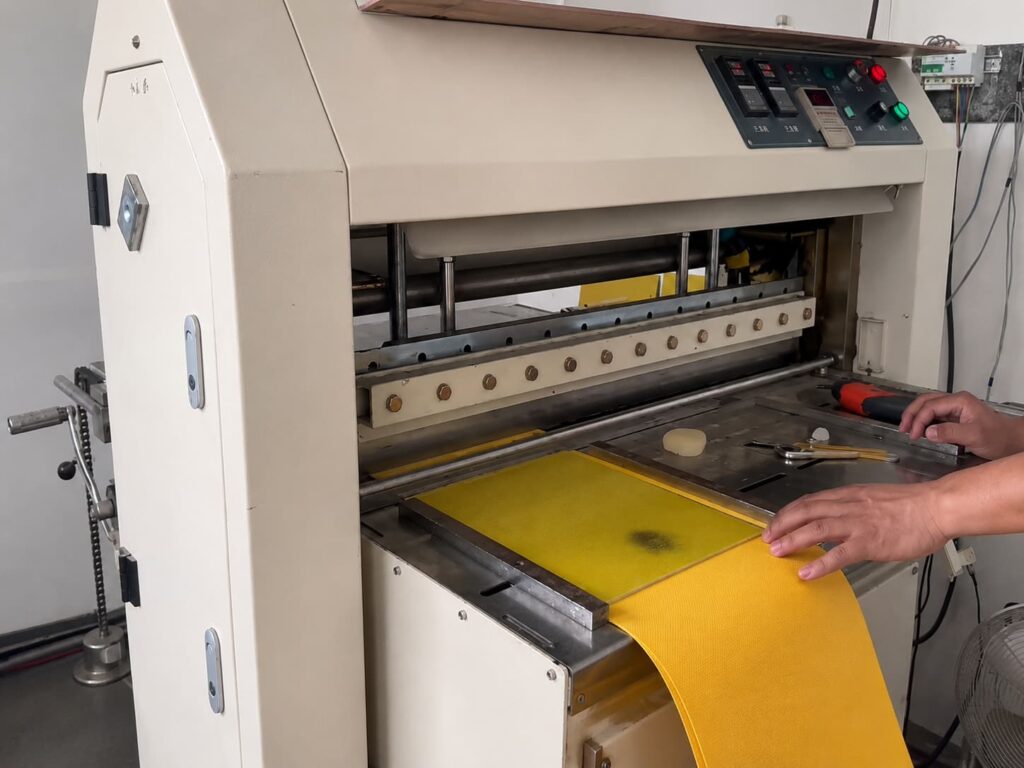

The filter media is pleated according to the required filter element size and filtration demand. During the pleating process, the media can also be automatically cut to the required length, helping prepare the pleated media pack for the next assembly step.
Metal Mesh Rolling
Metal mesh is rolled into the required cylindrical shape according to the filter element diameter and structure. Both inner support mesh and outer protection mesh may need this forming step before welding and assembly.
Mesh Welding
After rolling, the metal mesh is welded to keep the cylindrical structure stable. This step helps the inner or outer mesh maintain its shape during later assembly and filter use.
Media Pack and Mesh Assembly

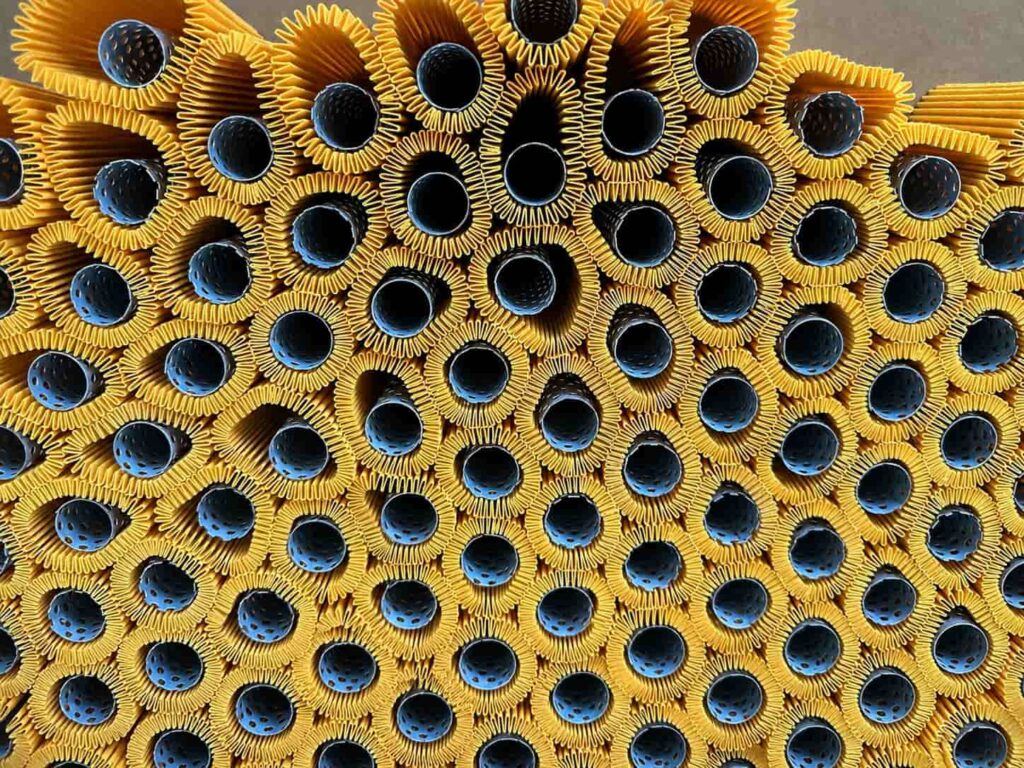

The pleated media pack is assembled with the rolled support mesh to form the main filter body. Depending on the filter structure, the mesh may be used inside, outside, or on both sides of the pleated filter media.
End Cap Glue Application

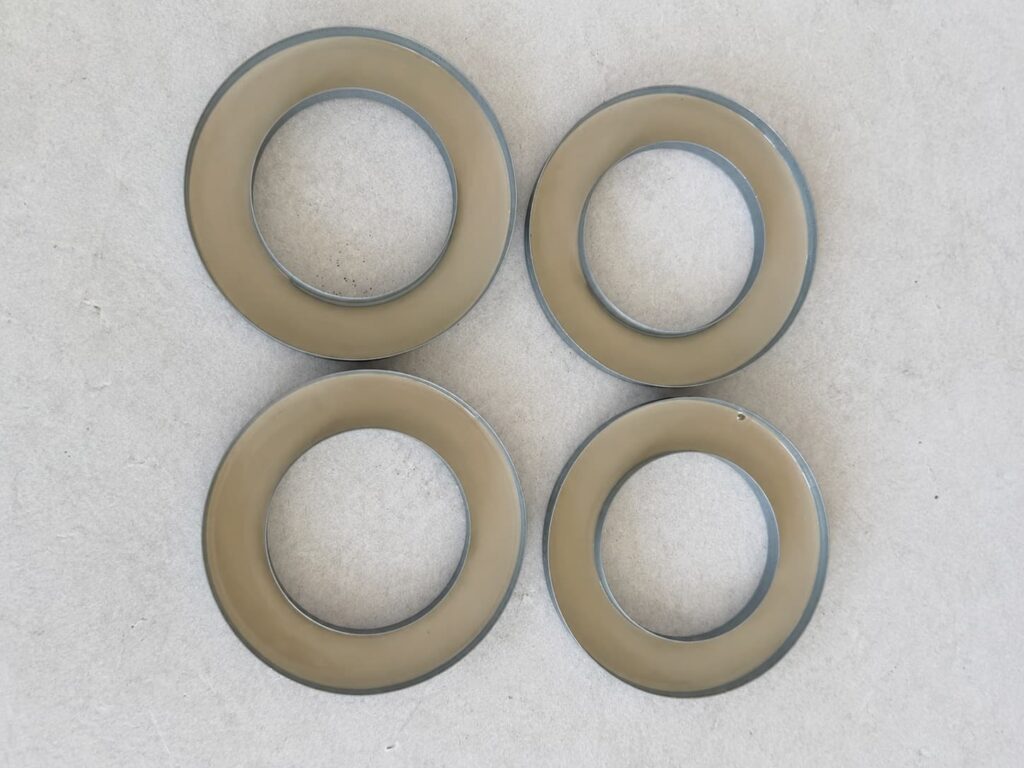

Glue is applied to the end cap according to the required bonding position. This step helps prepare the end cap for sealing and fixing the filter media ends during final assembly.
End Cap Bonding

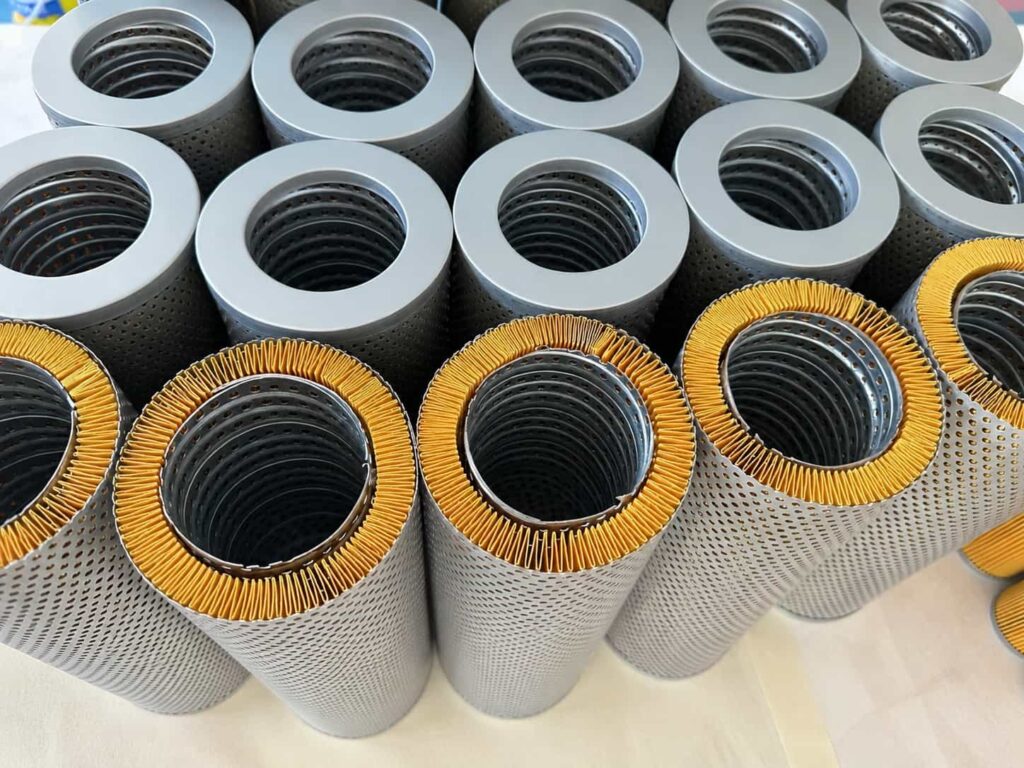

The glued end cap is bonded with the filter body to complete the basic filter element structure. This step helps seal the media ends, fix the support structure, and keep the filter element stable for later inspection or packaging.
Custom Filter Production Support
Which Production Steps Can Be Customized?
For replacement filters, OEM projects, and custom filter element development, several production details can be adjusted according to the original sample, drawing, equipment model, or working condition.
Pleat Height
Pleat height can be adjusted according to the filter element diameter, media type, and required filtration area.
Filter Media Material
Filter paper, fiberglass, synthetic media, or other materials can be selected based on filtration demand and working conditions.
Inner Mesh Diameter
The inner support tube diameter can be made according to the filter structure, installation size, and flow requirement.
Outer Mesh Structure
Outer protection mesh can be adjusted for different filter element sizes, support needs, and protection requirements.
End Cap Material
End caps can be made from metal, plastic, or other suitable materials according to the filter type and application.
Sealing Material
Sealing materials can be selected according to oil, fuel, hydraulic fluid, temperature, and working environment.
Overall Filter Dimensions
Overall height, outer diameter, inner diameter, sealing position, and connection structure can be checked and customized.
Sample-Based Development
If you cannot provide complete drawings, we can review the original sample, cross number, photos, and key dimensions before production.
Production Videos and Process Details
Some production steps can be viewed through our workshop videos. These short process views help buyers understand how filter media, metal mesh, and support structures are formed before final assembly.
The pleating process forms the filter media into the required pleat height and spacing. Our pleating equipment can also cut the media during the same process, helping prepare the pleated media pack for later assembly.
Metal Mesh Rolling Process
Metal mesh is rolled into cylindrical support structures according to the required filter diameter. This process can be used for both inner support mesh and outer protection mesh, depending on the filter element design.
Mesh Welding Process
After the metal mesh is rolled, the seam is welded to keep the cylindrical structure stable. This step helps the mesh maintain its shape before it is assembled with the pleated filter media.
Custom Order Support
How This Process Supports Custom Filter Orders
Different industrial filter elements may use different media, mesh structures, end caps, and sealing materials. Our production process can be adjusted according to the original sample, part number, filter dimensions, and actual working conditions.
Sample or Part Number Review
You can provide an original sample, OEM number, cross reference number, product photo, or basic dimensions. We use this information to understand the filter structure before production.
Material and Structure Matching
Filter media, inner mesh, outer mesh, end caps, and sealing materials can be matched according to the original filter design and application environment.
Dimension Confirmation
Key dimensions such as overall height, outer diameter, inner diameter, sealing position, and end cap structure are checked before sample or batch production.
Sample or Batch Production
After confirming the structure and dimensions, we can arrange sample production, small batch orders, or repeat production for replacement and OEM filter projects.
FAQ
FAQ About Industrial Filter Element Production
These questions help buyers understand how the production process is related to filter customization, sample development, and batch orders.
Can the filter production process be adjusted for custom filter elements?
Yes. The production process can be adjusted according to the filter size, media material, pleat height, mesh structure, end cap type, sealing material, and application requirements.
Do all industrial filter elements use the same production steps?
Not always. Different filter elements may require different structures and materials. For example, some filters use inner mesh only, while others may use both inner support mesh and outer protection mesh.
Can you produce filters based on an original sample?
Yes. If you can provide an original sample, photos, part number, cross reference number, or key dimensions, we can review the structure and check whether sample production is possible.
Which filter details should be confirmed before production?
Important details include overall height, outer diameter, inner diameter, filter media type, pleat height, mesh structure, end cap material, sealing position, and working condition.
Can you support small batch filter production?
Yes. For many replacement filter and custom filter projects, we can support sample checking, small batch production, and repeat orders after the structure and dimensions are confirmed.
Do you provide production videos for filter manufacturing steps?
Some production steps can be shown through workshop videos, such as filter media pleating, metal mesh rolling, and mesh welding. Available videos depend on the specific process and product type.
