Custom Industrial Filter Dimensions
LSX Filter supports custom dimension review for industrial filters, including hydraulic oil filters, fuel filters, oil filters, air filters, spin-on filters, and replacement filter elements. Buyers can send old samples, photos, drawings, OEM numbers, cross-reference numbers, or equipment models to confirm key dimensions before sample arrangement or bulk production.
When Do Buyers Need Industrial Filter Dimension Support?
Industrial filter dimension support is useful when buyers need to confirm whether a replacement filter can match the original installation space, sealing structure, thread size, or equipment requirement before sample confirmation or bulk purchasing.
Replacing an Old Industrial Filter
When the old filter is available but the part number is missing, unclear, or damaged, key dimensions can help review the possible replacement direction.
Confirming Cross Reference Filters
Even when an OEM number or cross reference number is available, dimensions may still need to be checked before distributor stock or bulk orders.
Custom Filter Development
For non-standard industrial filters, buyers may need to provide measurements, drawings, samples, or installation details before production.
Reducing Bulk Order Risk
Dimension review helps reduce mismatch risks for importers, wholesalers, distributors, repair companies, and equipment parts buyers.
Key Industrial Filter Dimensions We Check

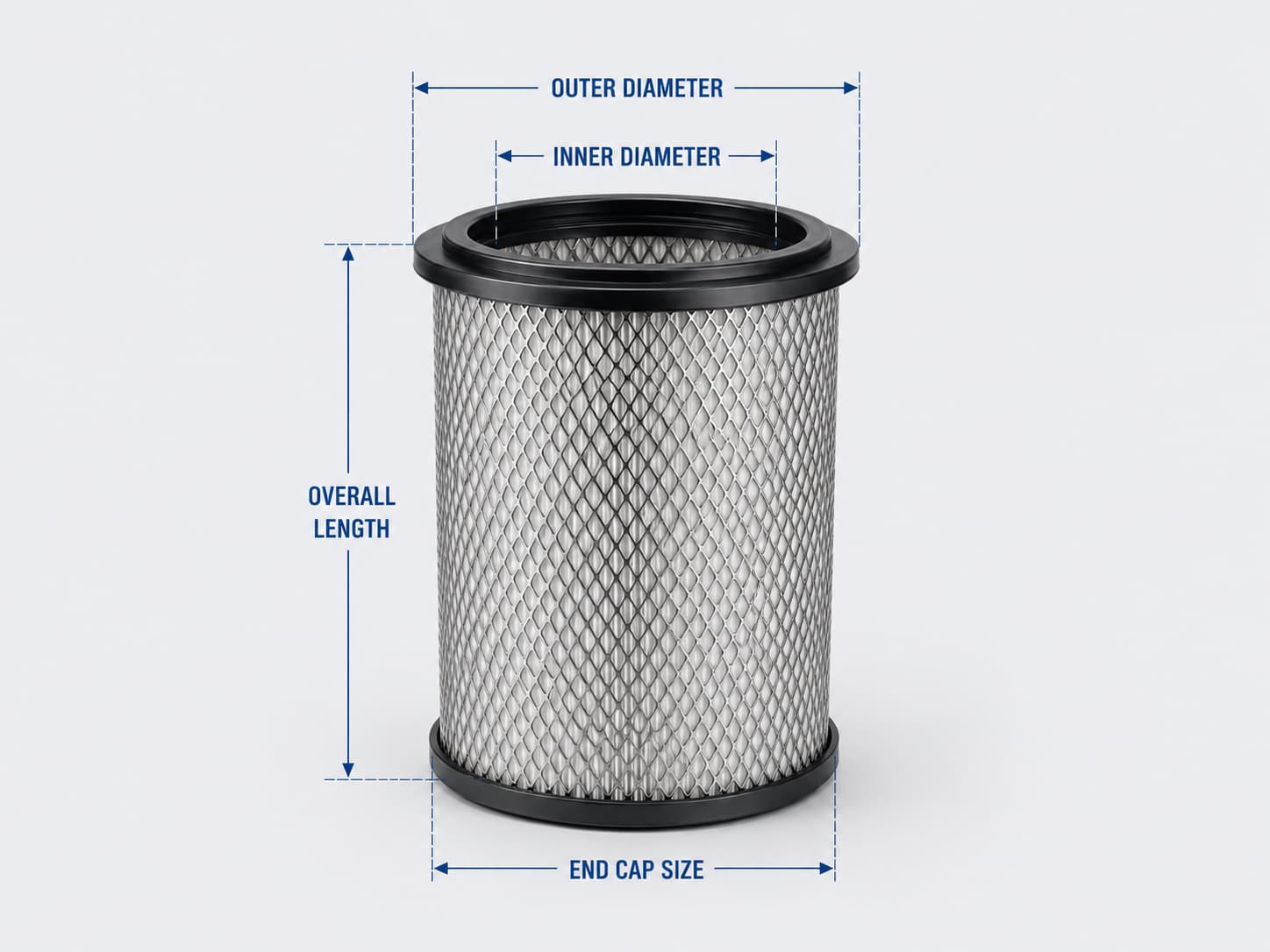

Different industrial filters require different measurement points. LSX Filter reviews overall size, thread, gasket position, end cap structure, sealing method, and installation requirements to support filter sample confirmation or bulk purchasing.
- Overall height or length
- Outer diameter
- Inner diameter
- Thread size
- Gasket size
- End cap size
- Sealing surface
- Center tube size
- Pleat height
- Installation space
How We Confirm Custom Industrial Filter Dimensions
When the exact filter model is unclear or a custom replacement is required, LSX Filter can confirm key dimensions through the old filter, technical drawings, or installation requirements. The purpose is to check size, structure, sealing, and fit before sample preparation or bulk production.
Measure from the Old Filter

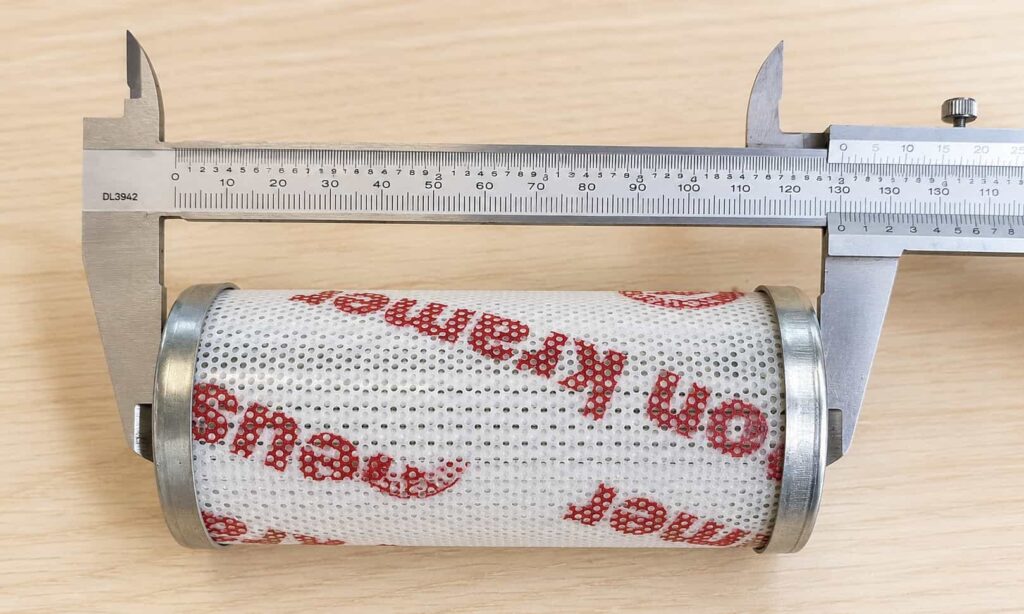

If the old industrial filter is available, dimensions can be confirmed directly from the sample. Key points may include overall length, outer diameter, inner diameter, thread size, gasket position, end cap size, sealing surface, and installation interface.
Confirm from Technical Drawings

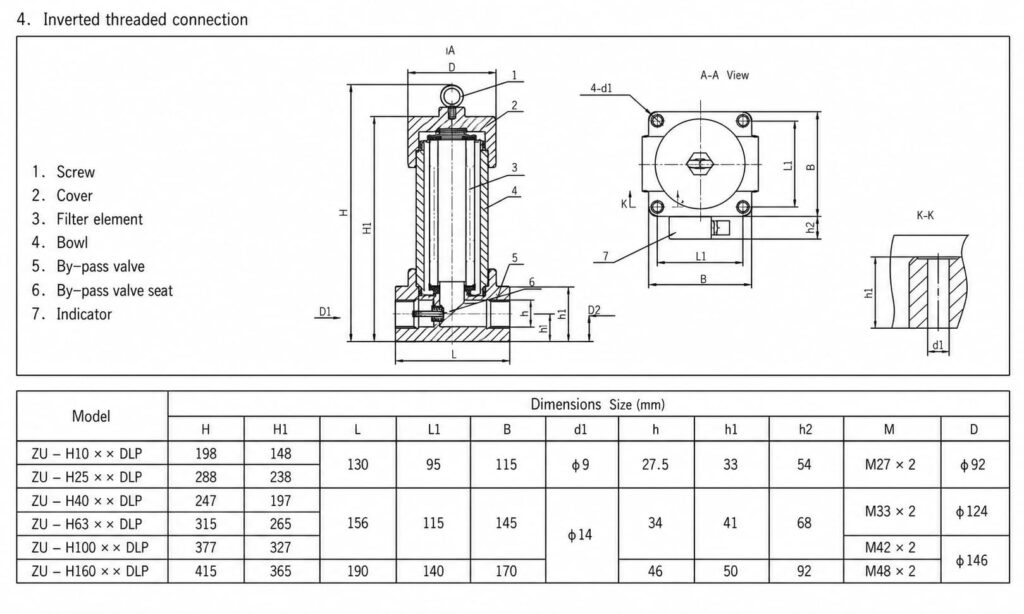

For custom or non-standard industrial filters, technical drawings can provide clearer dimensional references. Drawings help confirm size tolerance, end cap design, sealing structure, material requirements, and production details before sample preparation.
Check Based on Installation Requirements

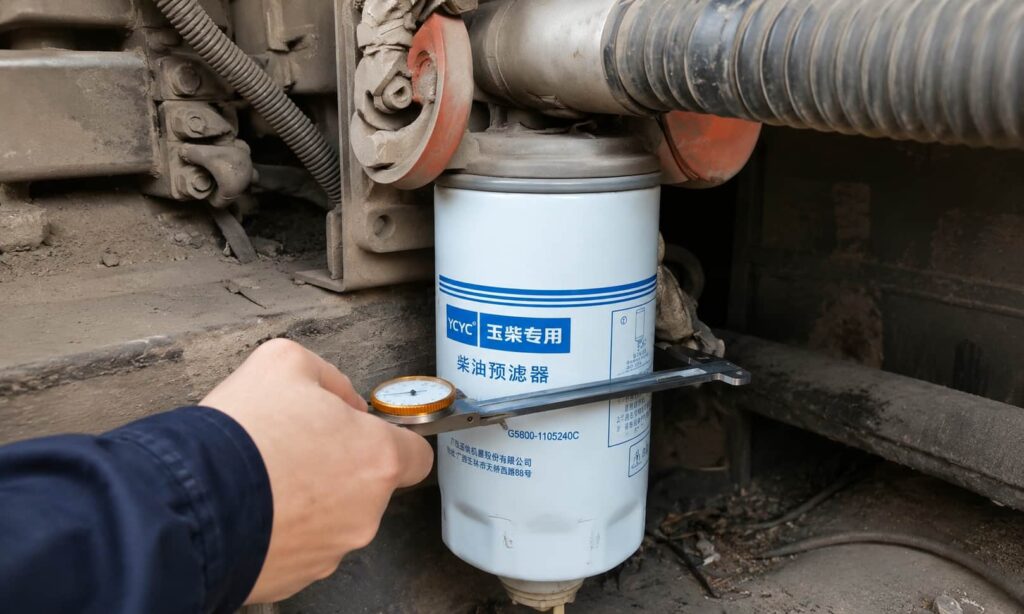

When the filter is developed for a specific housing, equipment, or application system, installation requirements must also be reviewed. LSX Filter checks the available space, mounting method, sealing position, flow direction, and working condition to reduce mismatch risk.
Dimension Review for Different Industrial Filter Types
Different industrial filters have different installation and sealing requirements. LSX Filter reviews key dimensions based on filter type, mounting method, application system, and working conditions.
Hydraulic Filter Elements
For hydraulic filter elements, key dimensions include overall length, outer diameter, inner diameter, end cap size, sealing position, and installation space.
Fuel and Oil Filters
For fuel filters, diesel fuel filters, and oil filters, dimensions should match the mounting base, gasket position, flow direction, and system requirement.

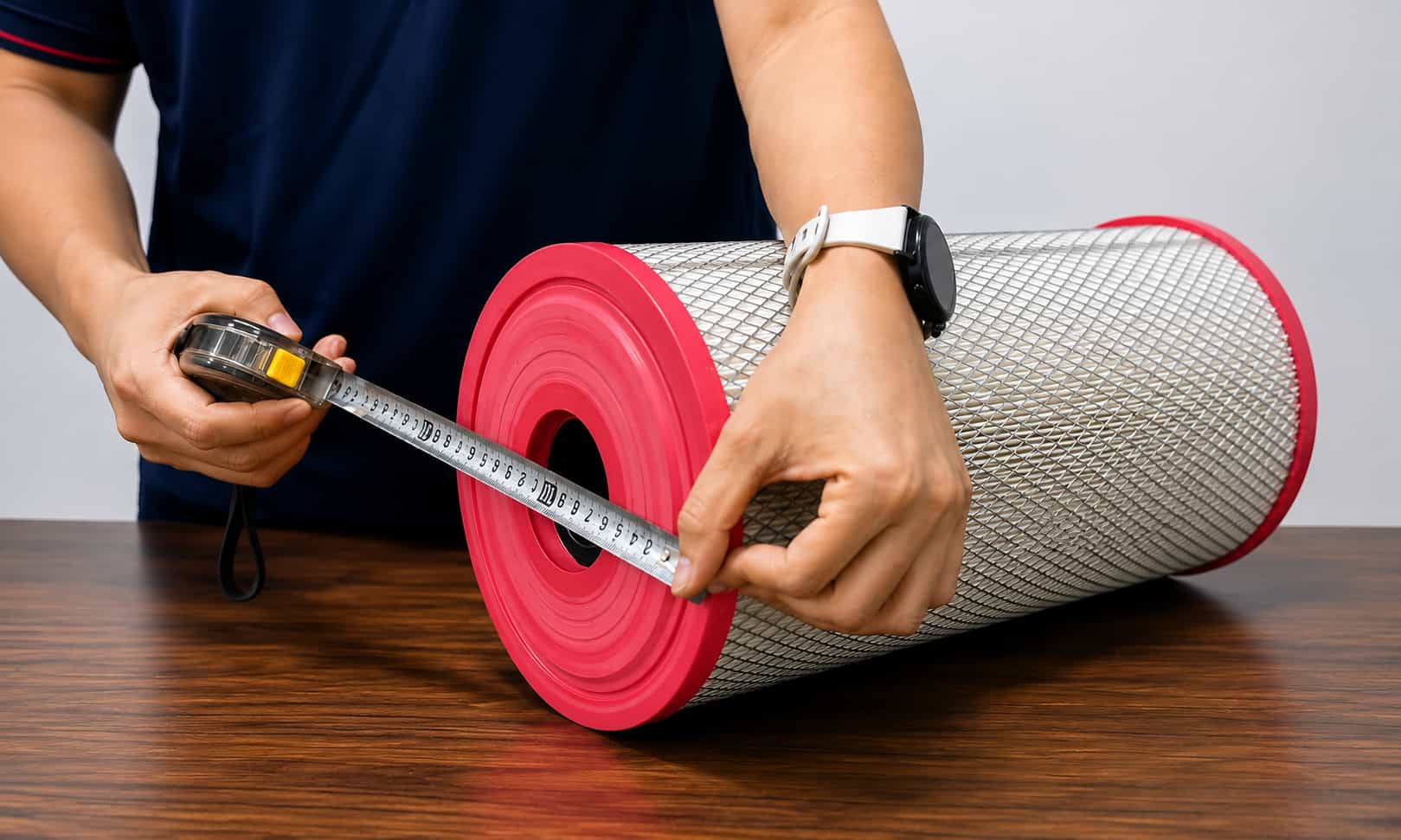

For industrial air filters, dimensions often include outer diameter, inner diameter, height, sealing edge, and housing fit.
Custom Industrial Filter Dimension Support Process
LSX Filter follows a simple dimension review process to help buyers confirm filter size, structure, sealing, and replacement direction before sample preparation or bulk purchasing.
Send Available Information
Share photos, videos, old samples, drawings, basic measurements, OEM numbers, cross reference numbers, or equipment model information.
Review Key Dimensions and Structure
LSX Filter reviews the filter size, sealing structure, thread, end cap, installation method, and application system.
Confirm Matching or Custom Direction
We confirm whether the filter may match an existing replacement direction or requires custom development.
Arrange Sample or Bulk Order Discussion
After dimension review, buyers can continue with sample confirmation, quotation, or bulk order planning.
Related Custom Filter Support
View the full custom filter support overview, including media, dimensions, structure, micron rating, cross-reference, packaging, and category support.
For projects without complete part numbers, LSX Filter can review old filter samples, clear photos, videos, equipment models, and basic application information before sample preparation.
Custom Filter Media and Material Options

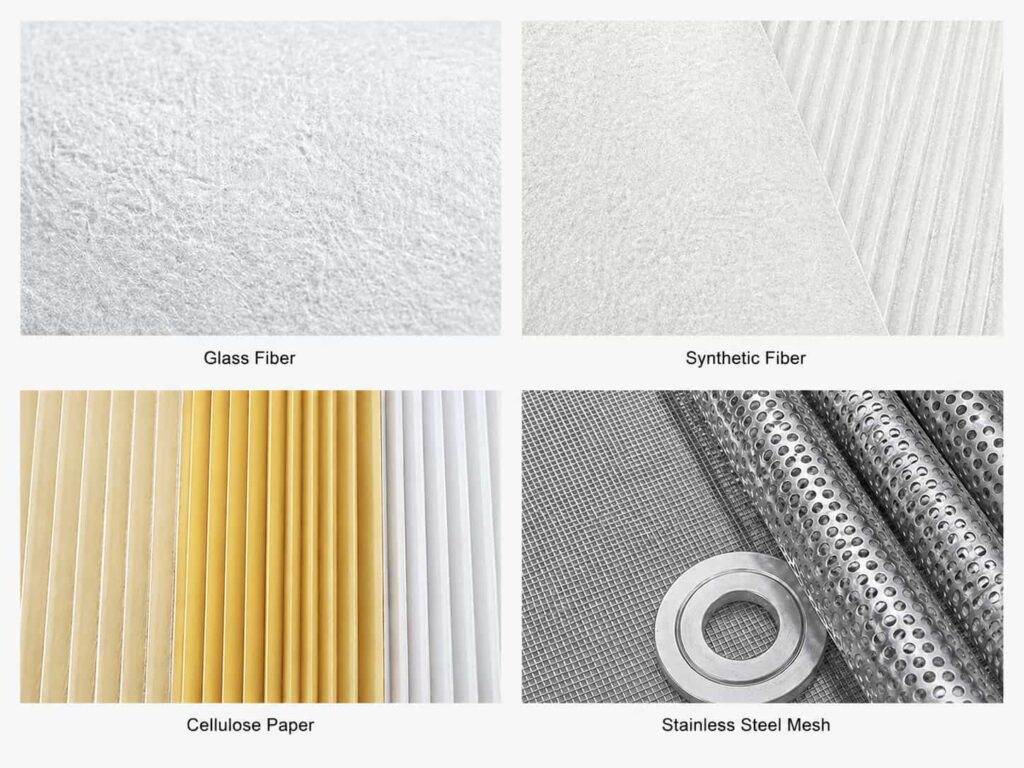

When replacement filters need different filtration performance, LSX Filter can review filter media, micron rating, flow resistance, dirt holding capacity, and working conditions for suitable filter development.
Have an OEM number, cross reference number, or competitor part number? LSX Filter can review the reference information together with key dimensions, sealing structure, filter media, and application requirements to help confirm the replacement filter direction.
FAQ About Custom Industrial Filter Dimensions
What dimensions should I provide for a custom industrial filter?
Common dimensions include overall height, outer diameter, inner diameter, thread size, gasket size, end cap size, sealing surface, and installation space. The required dimensions may vary depending on the filter type, application system, and installation method.
Can you make a replacement industrial filter based on an old sample?
Yes. An old filter sample can help LSX Filter review the structure, size, sealing method, material, and possible replacement or custom production direction. This is useful when the original part number is missing, unclear, or damaged.
What if I only have photos or videos of the industrial filter?
Clear photos and videos can support initial review, especially when they show the filter label, thread, gasket, end cap, pleat structure, and installation interface. For final dimension confirmation, measured data or a physical sample may still be required.
Why are thread size and gasket size important for spin-on filter replacement?
Thread size and gasket position directly affect installation fit and sealing performance. If these dimensions do not match, the spin-on filter may not install correctly, seal properly, or may cause leakage during operation.
Can custom industrial filter dimensions be checked before bulk production?
Yes. Dimension review is recommended before sample arrangement or bulk production, especially for replacement filters, distributor stock, custom filters, and cross reference projects. This helps reduce mismatch risk before larger purchasing decisions.
