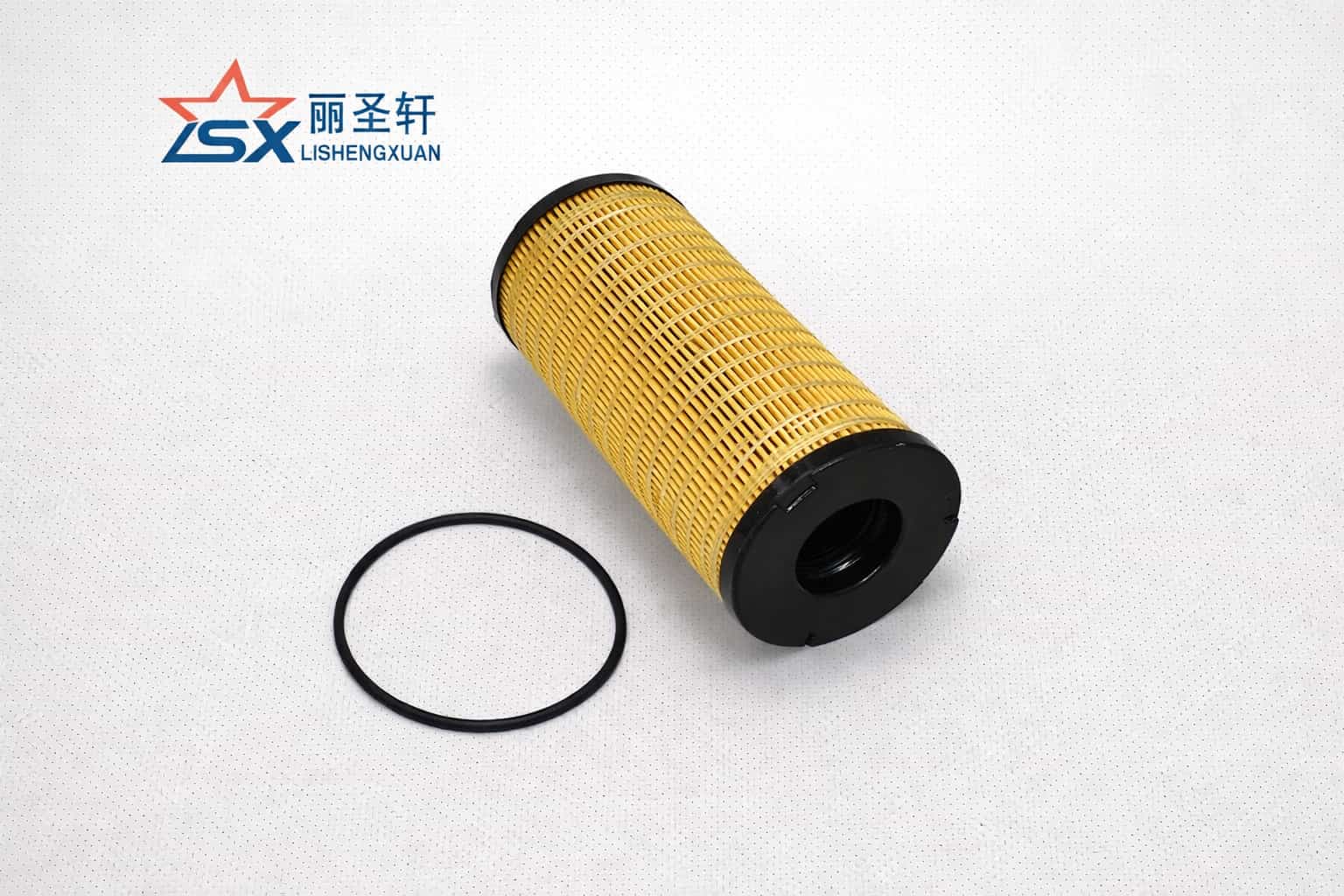

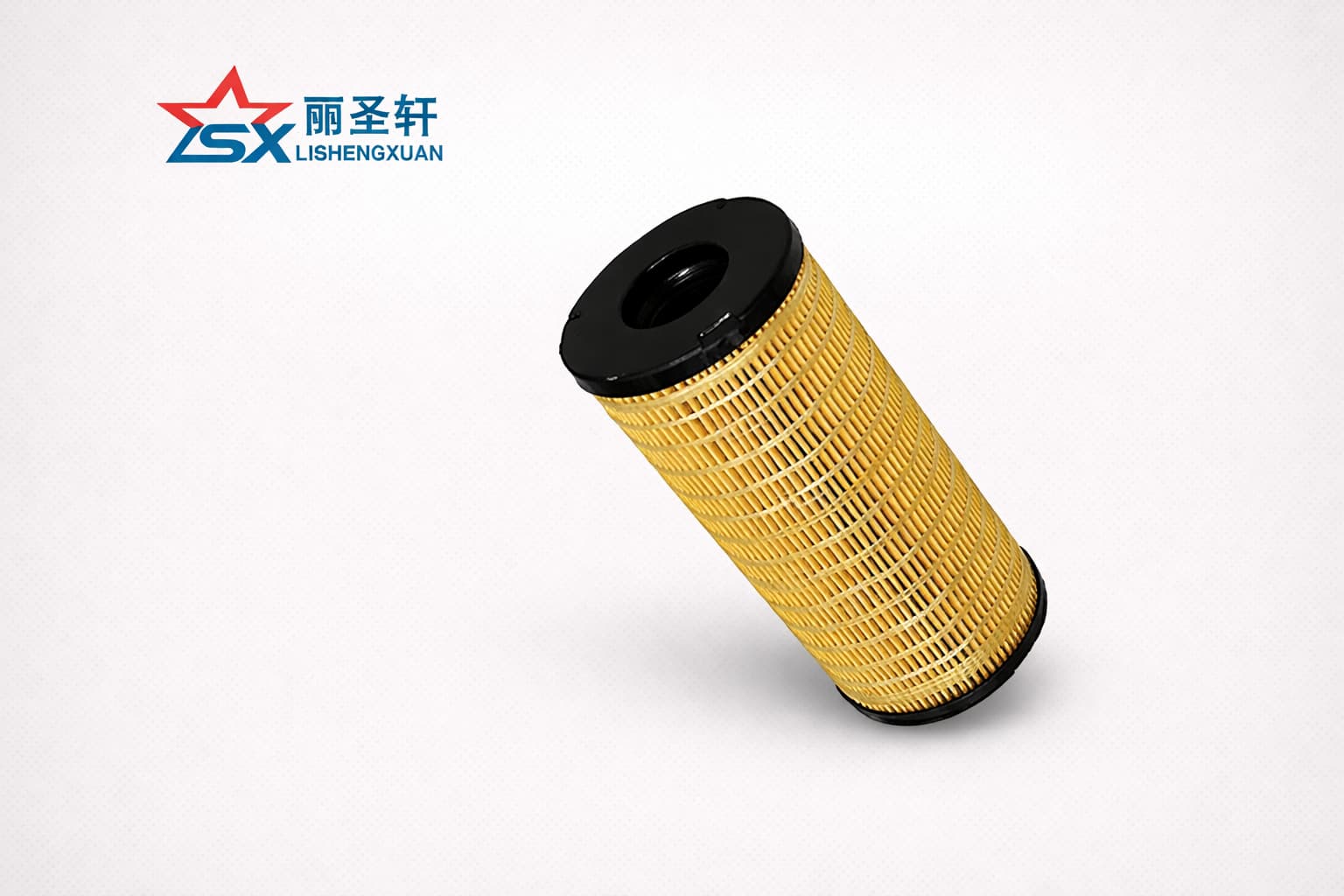

26560201 Fuel Filter Element Replacement

Viwe More : Diesel Fuel Filters

High-efficiency fuel filter element made with cured paper media for reliable contaminant removal in diesel systems. Suitable for construction equipment, agricultural machinery, and industrial engines operating in demanding environments.

OEM Numbers

For cross-reference only. Fits equivalent part numbers with matching dimensions and application.

BOBCAT 6911907

CATERPILLAR 1R0794

CLAAS 11372910

FG WILSON 1000059651

GEHL 216850

GENIE 0745010057

HAULOTTE 2427003070

JCB 32925423

JLG 7028655

MANITOU 605013

MASSEY FERGUSON 4224811M1

MCCORMICK 707663A1

MERLO P00690

PERKINS 934181

TENNANT 372117

WACKER NEUSON 1000123922

XTREME MANUFACTURING 13952008

Technical Specifications

Filter Media

: Cured Paper

Filtration Accuracy

1–100 μm

Outer Diameter

76 mm

Inner Diameter

35 mm

Height

158 mm

Thread Size

1-1/4"-12 UNF

Working Pressure

0.2–2.0 MPa

Flow Rate

10 L/min

Seal Ring Size

5 mm

MOQ

20 pcs

JCB

3CX, 3CX 4T, 407 ZX, 4CX 4T, 520-50 SLP, 524-50, 527-55, 530-70, 533-105, 535-125, 540-170

GENIE

GTH 3713, GTH 4013 SX, GTH 4017 SX, GTH 4514, SX-135 XC

CATERPILLAR

315 CL, AP300, CB434D, CS433C, TH220B, TH330B, TH560B

MANITOU

MLT Series, MT Series, M Series Telehandlers

MASSEY FERGUSON

5400 Series, 6400 Series, 7400 Series Tractors

PERKINS (Engines)

1103 Series, 1104 Series Diesel Engines

HAULOTTE

HTL Series, HA Series Lifting Equipment

MERLO

P Series Telehandlers

WACKER NEUSON

DW Series Dumpers, SW Series Equipment

Other Brands

BOBCAT, GEHL, JLG, CLAAS, XTREME MANUFACTURING, FG WILSON, TENNANT and more heavy-duty equipment

1. Does the part number match exactly?

Yes, this filter replaces multiple OEM part numbers listed above.

2. What equipment is this filter suitable for?

It is used in telehandlers, excavators, loaders, generators, tractors, and other diesel-powered construction and agricultural equipment across brands like JCB, CAT, MANITOU, and PERKINS.
